FH35-35 annular bop with packing elements and API 16A certificate,Send your address,your telephone number,post code,and express account number to our mail box,and told us which samples you need and samples specification.,$10,000.00 – $100,000.00/ Set|1 Set/Sets(Min. Order)

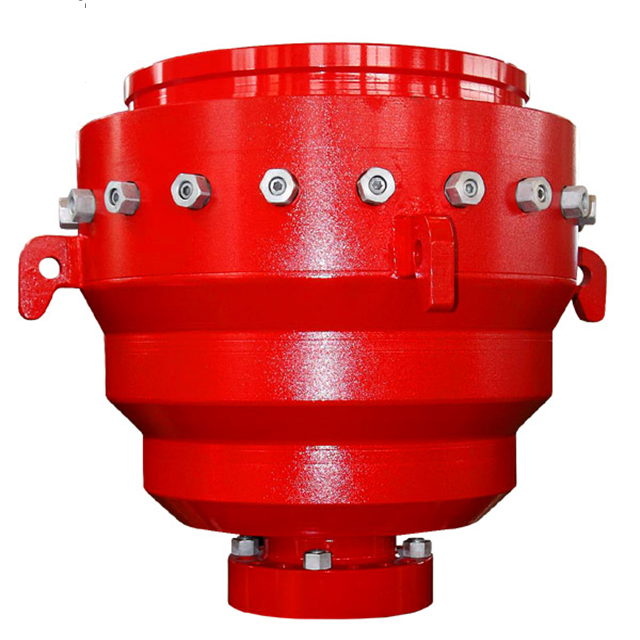

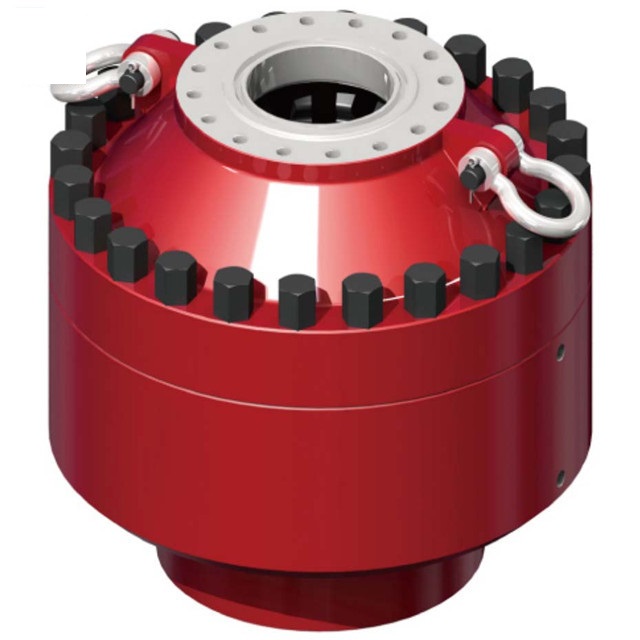

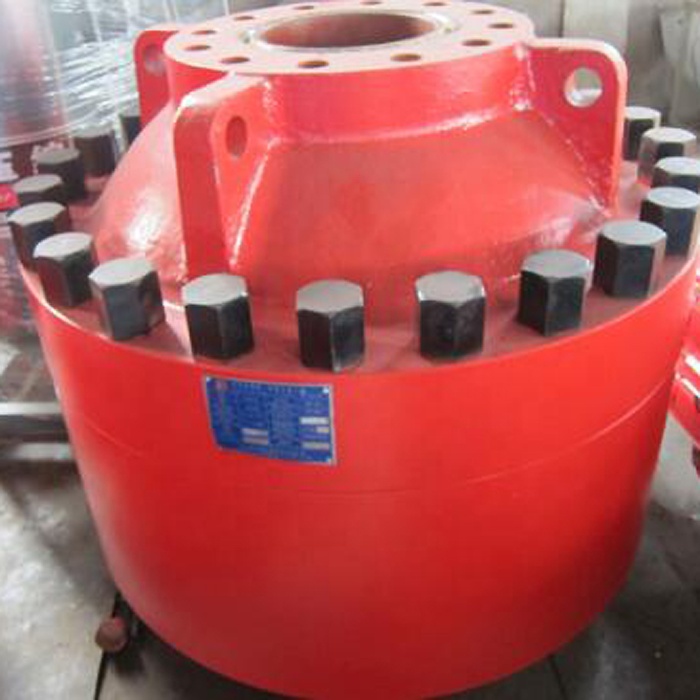

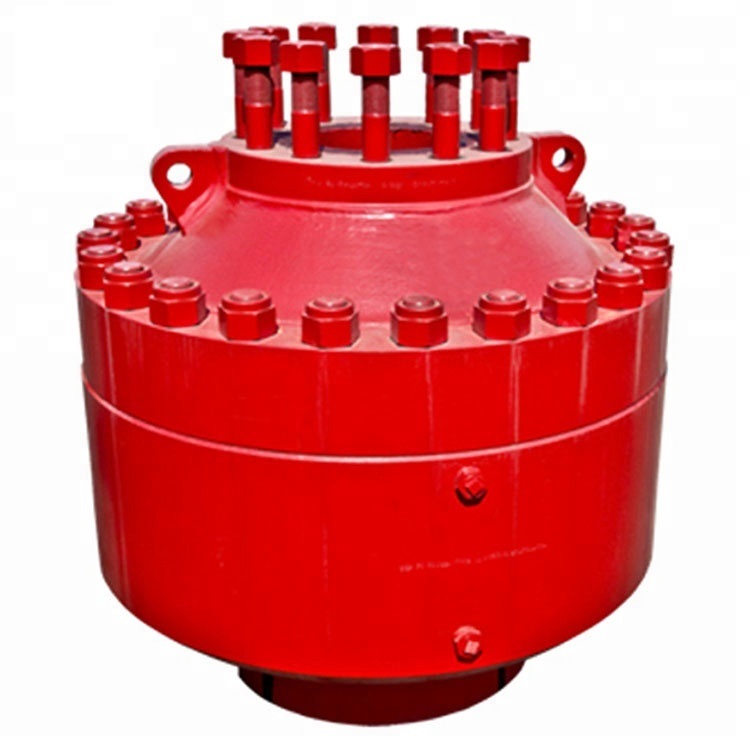

FH35-35 annular bop with packing elements and API 16A certificate
BOP Stack Feature 1, standardAPI 16A 2, Bore dia.: 7 1/16(180mm)21 1/4(540mm) 3, Pressure: 3000 psi (500mpa)5000psi (35mpa). |
Model | FH28-21 | FH35-21 | FH18-35 | FH28-35 | FH35-35 | |
Bore Dia. | mm | 280 | 346 | 180 | 280 | 346 |
in | 11 | 13-5/8 | 7-1/16 | 11 | 13-5/8 | |
Rated Working Pressure | Mpa | 21 | 21 | 35 | 35 | 35 |
Psi | 3000 | 3000 | 5000 | 5000 | 5000 | |
Shell Testing Pressure | Mpa | 42 | 42 | 70 | 70 | 70 |
Psi | 6000 | 6000 | 10000 | 10000 | 10000 | |
Recom.Hyd.Pressure | Mpa | 8.4-10.5 |
|
|
|
|
Psi | 1200-1500 |
|
|
|
| |
Liters to Open | L | 33 | 66 | 15 | 57 | 66 |
Usgal | 8.68 | 17 | 4 | 15 | 17 | |
Liters to Close | L | 48 | 90 | 20 | 72 | 90 |
Usgal | 12.6 | 24 | 5 | 19 | 24 | |
Inlet and Outlet Size of Control Pipeline | NPTI | NPTI | NPTI | NPTI | NPTI | NPTI |
Working Temperature | -29-121 | |||||
Media | Crude oil,natural gas drilling fluid containing H2S | |||||
Weight | kg | 3272 | 5352 | 1444 | 4328 | 6384 |
ibs | 9340 | 11800 | 3184 | 9522 | 14015 | |
Dimensions(ODXH) | mm | 1032x930 | 1245x1090 | 745x788 | 1135x1065 | 1271x1220 |
in | 45x42 | 49x43 | 29x31 | 45x42 | 50x48 |
1.High quality products.
2.Fast delivery.
3.OEM services.
4.Perfect after-sale services.
Goldenman Petroleum Equipment Co.,Limited had explored the international market and enlarged international cooperation 10 years .Due to the competitive price ,good quality and excellent service ,our products are sold to America,Canada,Brazil,Columbia, Venezuela,India,Iran,UAE,Russia ,Kazakhastan,Italy,Hungary ,Australia,Syria,Egypt ,etc .and get good reputation from our overseaclients .
1.How to get free samples?
Send your address,your telephone number,post code,and express account number to our mail box,and told us which samples you need and samples specification.
2.Can you produce products with my own brand?
Yes,we can offer OEM services.
3.Do you have any international certificate?
Yes,we have API, ISO and etc.
4.How long does my order take to be delivered?
It usually takes 5 to 30 days,which generally depends on the quantity of your order and our storage.
