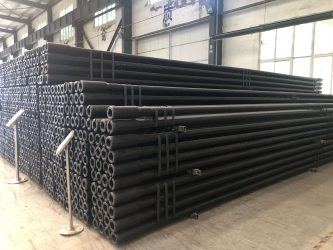

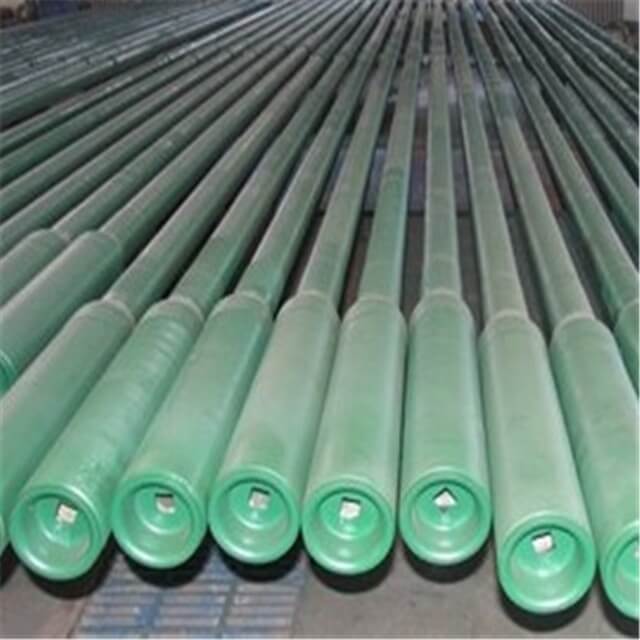

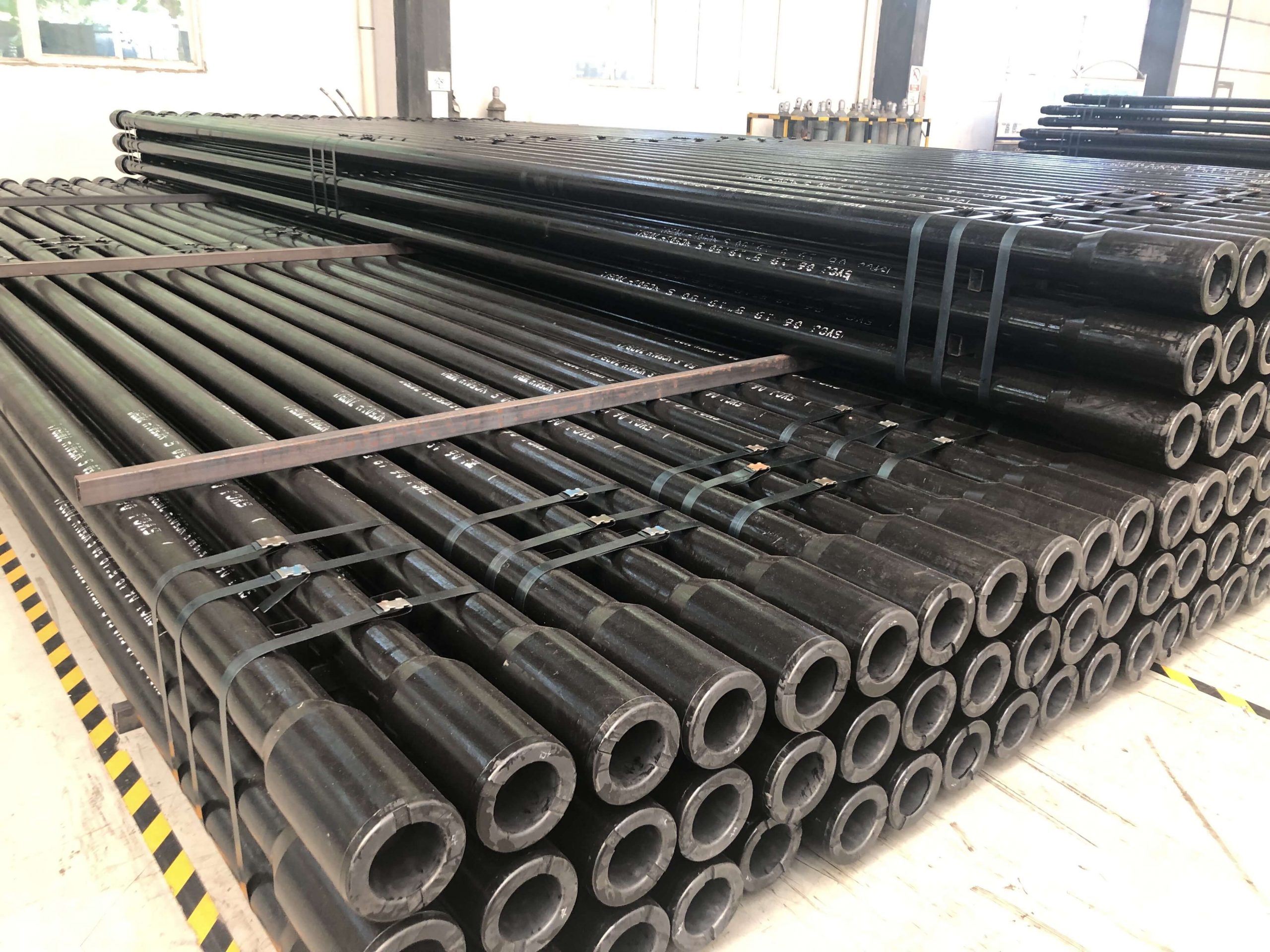

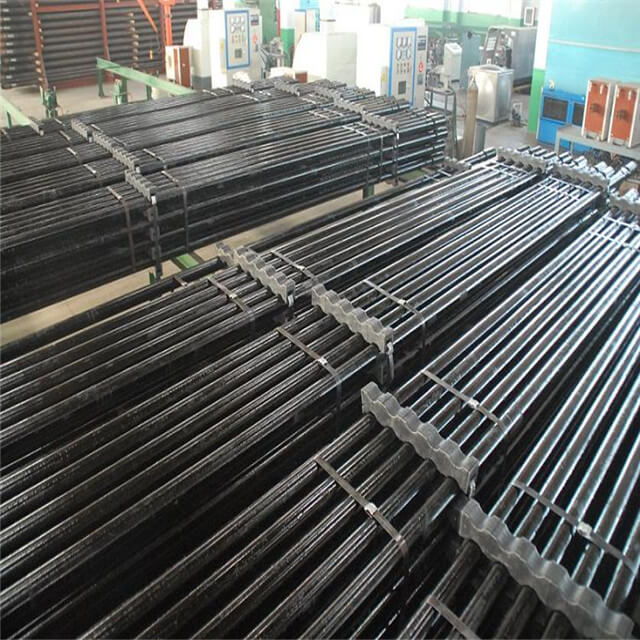

API 5DP drill pipes /heavy weight drill pipe for oil field HWDP,Packaging Detailssteel packing for API 5DP drill pipes /heavy weight drill pipe for oil field HWDP,Supply Ability100 Piece/Pieces per Month,
Product Name | API 5DP standard HWDP/AISI 4145H Integral Heavy Weight Drill Pipe in oil and gas well drilling with hardfacing and coating | |
Standard | API 5DP | |
Grade | Drill Pipe Body | PSL.1: E, X, G, S / PSL.2: G, S |
Tool Joint | PSL.1, PSL.2, PSL.3 | |
Minimum Order Quantity | 10 Ton | |
Outside Diameter Ranges | 23/8 inch to 65/8 inch | |
Wall Thickness | 6.45mm to 12.70mm | |
Length | R1: 6.10-7.01m / R2: 8.84-9.75m / R3: 12.19-13.72 | |
Type | Seamless / Welded | |
Upset Style | IU, EU, IEU | |
Rotary Shouldered Connection Style | NC40, NC46, NC26, NC31, NC38, NC50, 51/2FH, 65/8FH |
Outside Diameter, in. | Inside Diameter, in. | Connection | Tool Joint OD , in. | Tool Joint ID , in. | Center Upset Diameter, in. | Central upset dia (in) | Min. drift dia. size (in) |
3-1/2 | 2-1/4 | NC38 | 4-3/4 (4-7/8, 5) | 2-1/4 | 4 | 4 | 2 |
2-1/16 | 2-1/16 | 1 13/16 | |||||
4 | 2-1/2 | NC40 | 5-1/4 | 2-1/2 | 4-1/2 | 4 1/2 | 2 1/4 |
2-9/16 | 2-9/16 | 2 5/16 | |||||
4-1/2 | 2-11/16 | NC46 | 6-1/4 | 2-11/16 | 5 | 5 | 2 7/16 |
2-3/4 | 2-3/4 | 2 1/2 | |||||
2-13/16 | 2-13/16 | 2 9/16 | |||||
5 | 3 | NC50 | 6-5/8 | 3 | 5-1/2 | 5 1/2 | 2 3/4 |
5-1/2 | 3-1/4 | 5-1/2FH | 7 (7-1/4, 7-1/2) | 3-1/4 | 6 | 6 | 3 |
3-3/8 | 3-3/8 | 3 1/8 | |||||
3-7/8 | 3-7/8 | 3 5/8 | |||||
4 | 4 | 3 3/4 | |||||
6-5/8 | 4 | 6-5/8FH | 8 (8-1/4, 8-1/2) | 4 | 7-1/8 | 7 1/8 | 3 3/4 |
4-1/2 | 4-1/2 | 4 1/4 | |||||
5 | 5 | 4 3/4 |
