Fishing Jar Type YSJ Manufacturers and Suppliers

Description

Technical Data

More Details

Description

Quick Details

Condition:: New

Warranty:: 1 Year

Applicable Industries:: Energy & Mining

Weight (KG):: 50

Showroom Location:: None

Video outgoing-inspection:: Provided

Machinery Test Report:: Provided

Marketing Type:: New Product 2020

Place of Origin:: Shandong, China

Brand Name:: Goldenman

Type:: Fishing Jar

Machine Type:: Drilling Equipment

Material:: Carbon steel

Processing Type:: Forging

Use:: Well Drilling

Certification:: API

standard:: API

Supply Ability

Supply Ability: 1000 Piece/Pieces per Month

Packaging & Delivery

Packaging Details

export package

Port

main china port

Technical Data

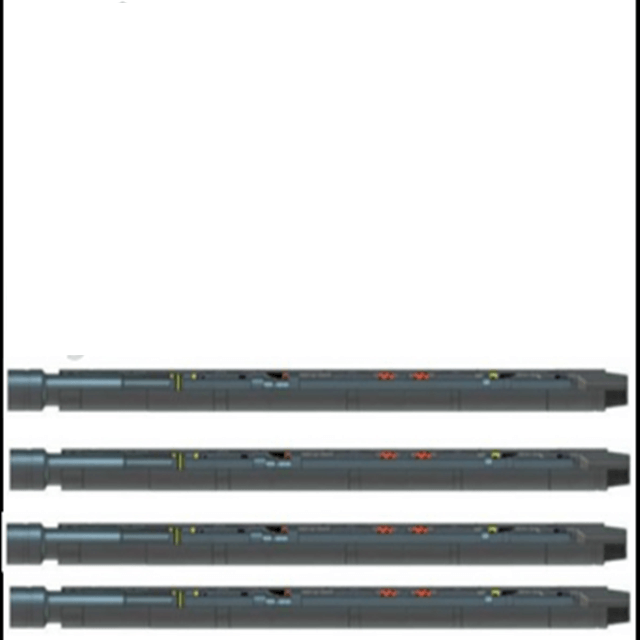

Fishing Jar Type YSJ

Fishing Jar Type YSJ is designed on the hydraulic principle. It utilizes the drilling string’s elastic potential energy resulting from the elastic deformation. Once the energy is released, a giant upward dynamic load is produced and the stuck accident is released, realizing the goal of fishing and coring operations. When used in combination with the jar intensifier type YJQ, it can generate better jarring effect.

TYPE	O.D. in (mm)	I.D. in (mm)	Tool Joint Connection API	Max. Working Torque Lbf-ft (N?m)	Max. Working Load Lbf(N)	Max. Tensile Load Lbf(N)	Max. Stroke in(mm)	Closed Overall Length ft-in(mm)
YSJ36	3-3/4 (95)	1-1/4 (32)	NC26	2,950 (4,000)	35,970 (160,000)	112,410 (500,000)	12 (305)	6’8” (2,041)
YSJ40	4 (102)	1-1/4 (32)	NC31	3,680 (5,000)	39,560 (176,000)	134,890 (600,000)	9 (229)	5’11” (1,804)
YSJ42	4-1/4 (108)	1-1/2 (38)	NC31	4,420 (6,000)	44,960 (200,000)	157,370 (700,000)	12 (305)	6’8” (2,041)
YSJ44	4-1/2 (114)	1-1/2 (38)	27/8REG	5,160 (7,000)	53,950 (240,000)	179,850 (800,000)	11-5/16 (288)	6’6” (1,986)
YSJ46	4-3/4 (121)	1-1/2 (38)	NC38	5,900 (8,000)	62,950 (280,000)	202,330 (900,000)	11-3/8 (290)	6’11” (2,114)
YSJ62	6-1/4 (159)	2-1/4 (57)	NC50	9,590 (13,000)	125,900 (560,000)	337,230 (1500,000)	15 (381)	8’10” (2,690)
YSJ70	7 (178)	2-3/8 (60)	NC50	11,060 (15,000)	143,890 (640,000)	404,670 (1800,000)	15 (381)	8’7” (2,616)
YSJ80	8 (203)	2-13/16 (71)	6-5/8REG	13,270 (18,000)	179,850 (800,000)	494,600 (2200,000)	15 (381)	8’7” (2,616)
YSJ90	9 (229)	3 (76)	7-5/8REG	14,750 (20,000)	215,830 (960,000)	562,050 (2500,000)	15 (381)	8’7” (2,616)

According to customer requirements,we can design and manufacture other serial specification products.

More Details

Packaging & Shipping

wooden case package, shipped according to the clients' need

Our Services

1.High quality products.

2.Fast delivery.

3.OEM services.

4.Perfect after-sale services.

FAQ

1.How to get free samples?

Send your address,your telephone number,post code,and express account number to our mail box,and told us which samples you need and samples specification.

2.Can you produce products with my own brand?

Yes,we can offer OEM services.

3.Do you have any international certificate?

Yes,we have API, ISO and etc.

4.How long does my order take to be delivered?

It usually takes 5 to 30 days,which generally depends on the quantity of your order and our storage.
