Mud desilter and Cyclone Desander
Oil Field Drilling Mud desilter and Cyclone Desander, Built on API RP 13C, with the certificate of authority to use the official API monogram.
oil field Oil and Gas Drilling Fluid Desander is important equipment for drilling liquid solid control. It is mainly used for the second phase purification of drilling liquid.$7,000.00 – $100,000.00/ Set|1 Set/Sets(Min. Order)

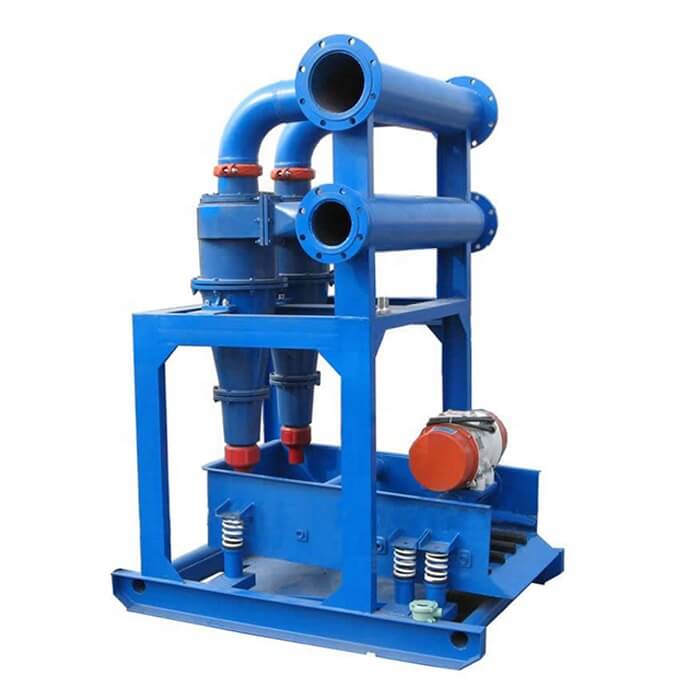

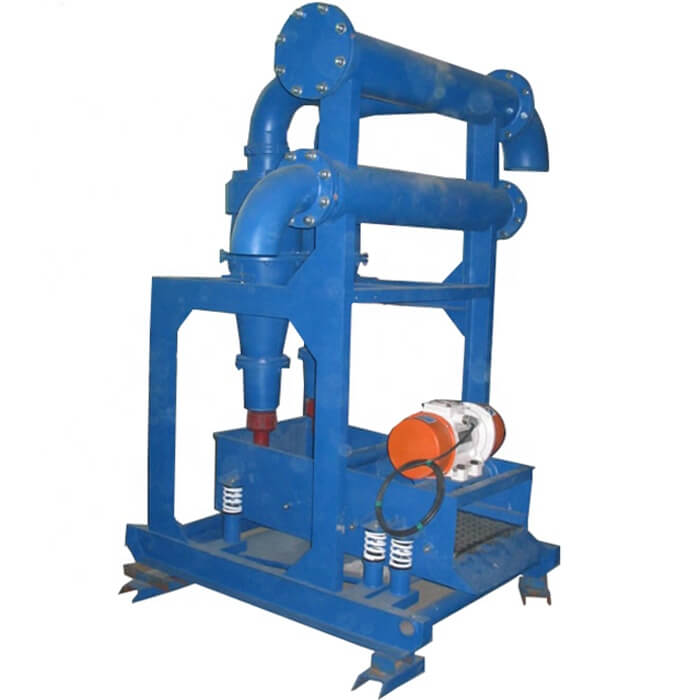

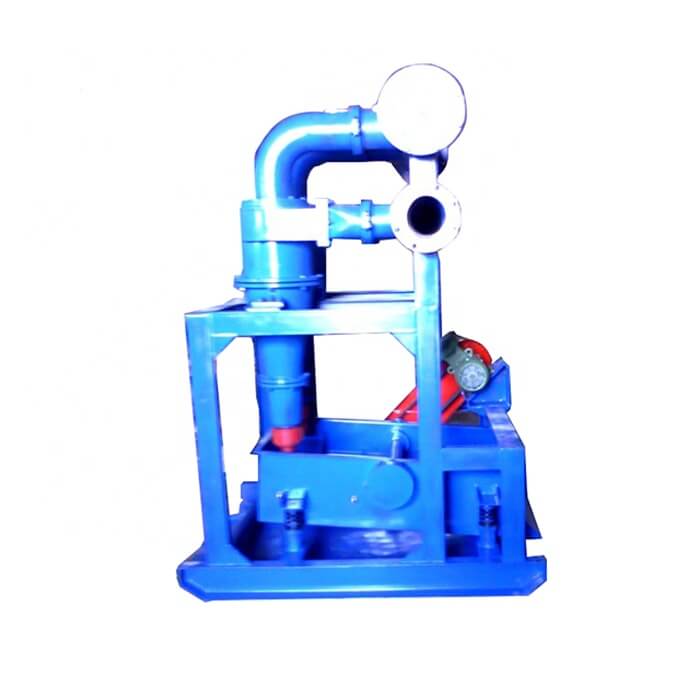

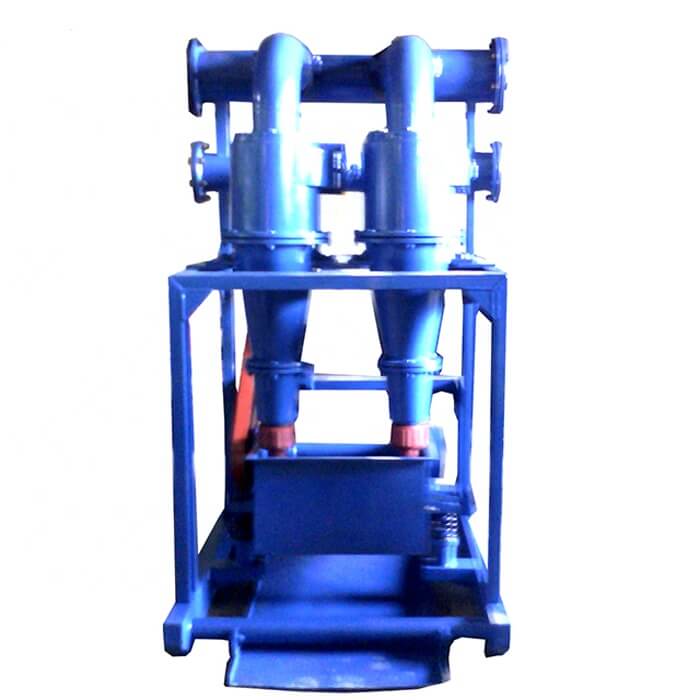

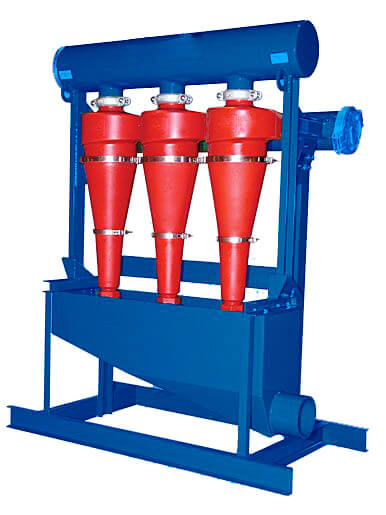

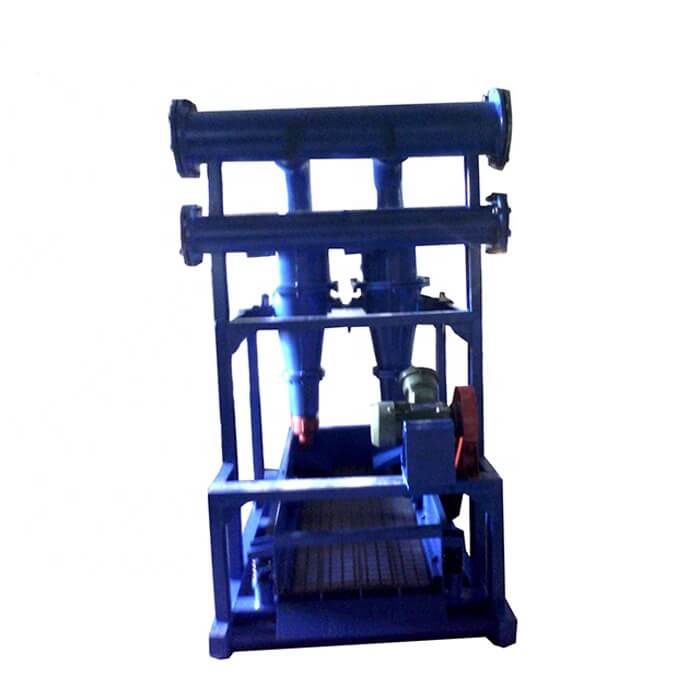

Oil Field Drilling Mud desilter and Cyclone Desander
Built on API RP 13C, with the certificate of authority to use the official API monogram.
oil field Oil and Gas Drilling Fluid Desander is important equipment for drilling liquid solid control. It is mainly used for the second phase purification of drilling liquid. It removes nocuous solid, stabilizes drilling liquid properties and improves drilling efficiency. The hydrodynamic cyclone of the desander is made of wear resistant cast iron. It is reliable, effective and serves long. The content of sand after the desander is controlled below 0.15%.
As a solids control equipment of the second stage in drilling operation, oil field Oil and Gas Drilling Fluid Desander is used to remove harmful solid particles of 40-74µm in drilling liquid. Suspending particles can be separated from the liquid under the centrifugal acceleration, by use of working principle of centrifugal subsidence.
At present time, four types, ZQJ300×2/ZQJ250×2 and ZQJ300×1/ ZQJ250×1,are available. The former applies to over 3000-meter-long drills, and the latter applies to small drills of less than 3000 meters and service rig.
Main Technical Parameter of oil field Oil and Gas Drilling Fluid Desander
Model | JZQJ300×2 / 1 | JZQJ250×2 / 1 |
Cyclone conic cylinder diameter | 300 mm | 250 mm |
Working Pressure | 0.2~0.45 MPa | 0.2~0.45 MPa |
Capacity | 240 / 120 m3/h | 200 / 100 m3/h |
Screen size | 1240×585 mm | 1240×585 mm |
Screen spec | 120-200 | 120-200 |
Inlet diameter | 6″ | 6″ |
Outlet diameter | 8″ | 8″ |
Power | 0.5 kW | 0.5 kW |
Weight | 780/680 kg | 740/640 kg |
Dimension | 1630×1136×2313 | 1630×1136×2250 |
