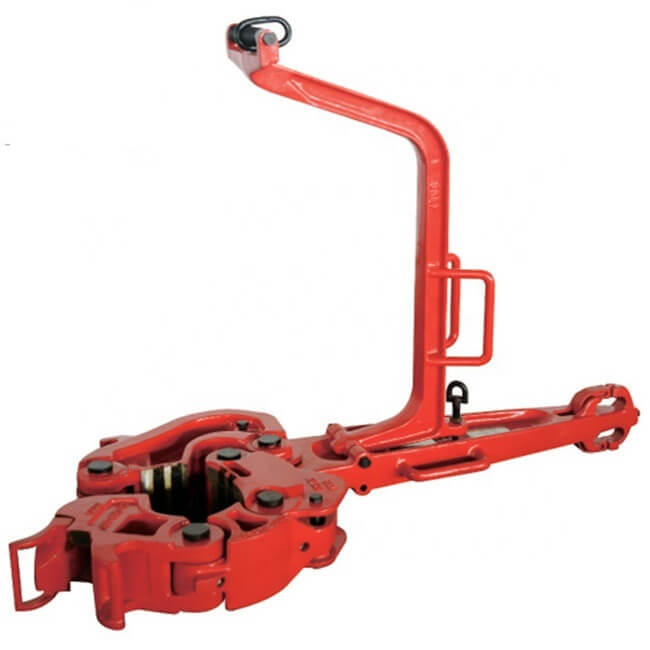

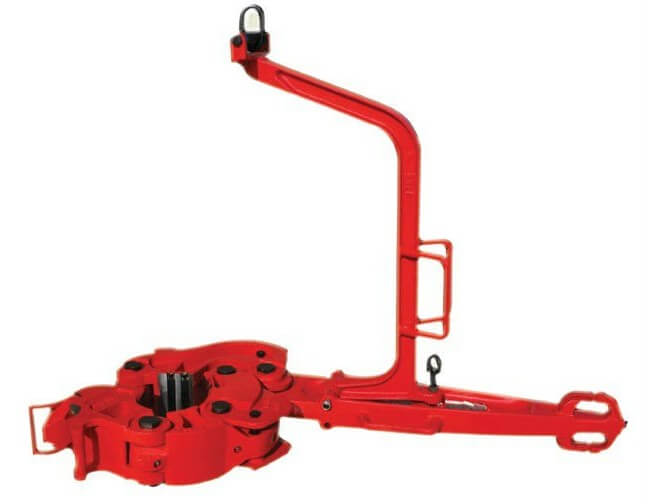

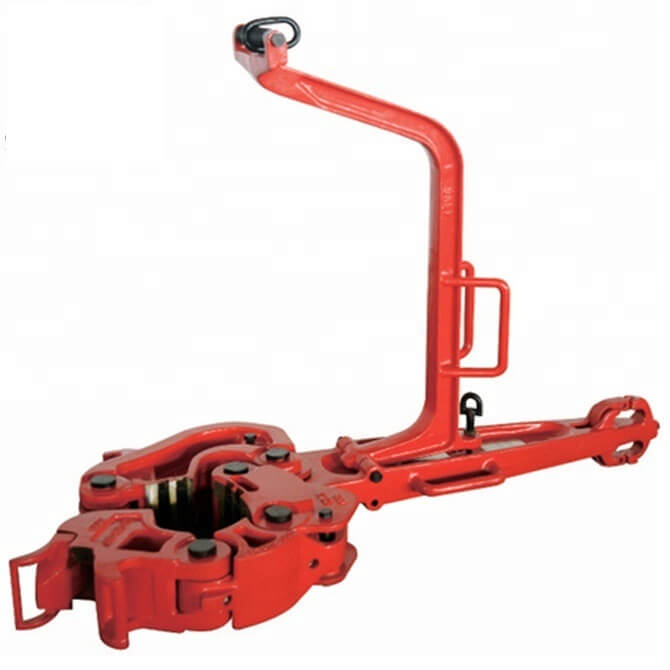

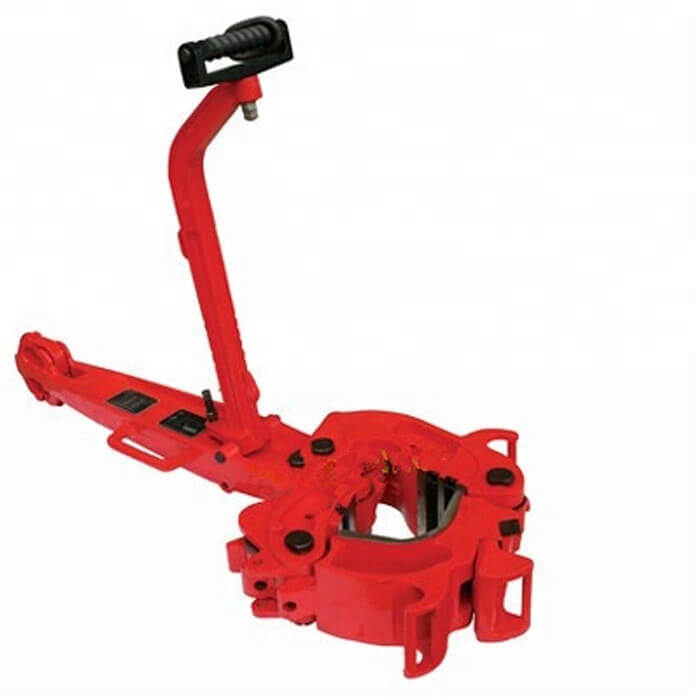

SDD Drill Pipe Manual Tong
Product name:SDD drill pipe Manual Tong,SDD Manual Tong handle size from :4-17″/135kN.m Rated Capacity:135KN·mThere are 1-5# lug jaws,hinged jaws 8 1/2″ to 17″ ,Maximum Rated Capacity 100,000ftlbs manufactured to API standard.$3,000.00>=1 Pairs
API 7K SDD Manual Tong
SDD Manual Tong handle size from :4-17"/135kN.m Rated Capacity:135KN·m
There are 1-5# lug jaws,hinged jaws 8 1/2" to 17" ,Maximum Rated Capacity 100,000ftlbs manufactured to API standard.
Main technical parameters
No of Latch Lung jaw | No of hinge pin hole | Size Range (in) | Size Range(mm) | Rated torque(kN.m) |
1# | 1 | 101.6-139.7 | 4-5.1/2 | 135 |
139.7-146 | 5.1/2-5.3/4 | |||
2 | 139.7-168.3 | 5.1/2-6.5/8 | ||
165.1-184.2 | 6.1/2-7.1/4 | |||
3 | 168.3-193.7 | 6.5/8-7.5/8 | ||
196.9-215.9 | 7.3/4-8.1/2 | |||
2# | 1 | 215.9-228.6 | 8.12/-9 | |
241.3-273 | 9.1/2-10.3/4 | |||
2 | 273-304.8 | 10.3/4-12 | ||
3# | 1 | 304.8-323.8 | 12-12.3/4 | 100 |
339.7-355.6 | 13.3/8-14 | |||
2 | 381 | 15 | ||
4# | 1 | 400 | 15.3/4 | 135 |
5# | 2 | 406.4 | 16 | 80 |
431.8 | 17 |
