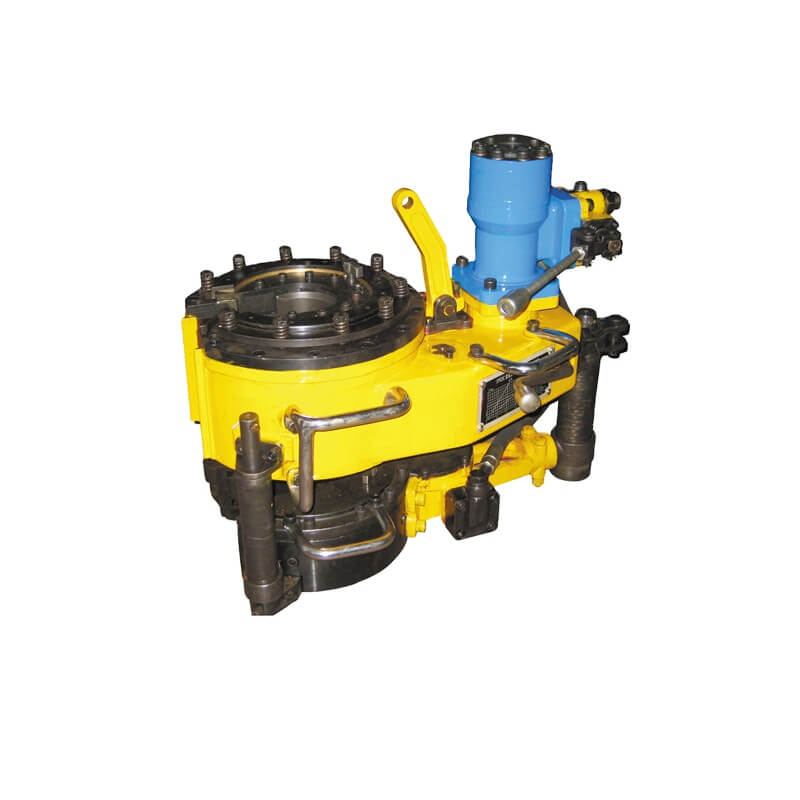

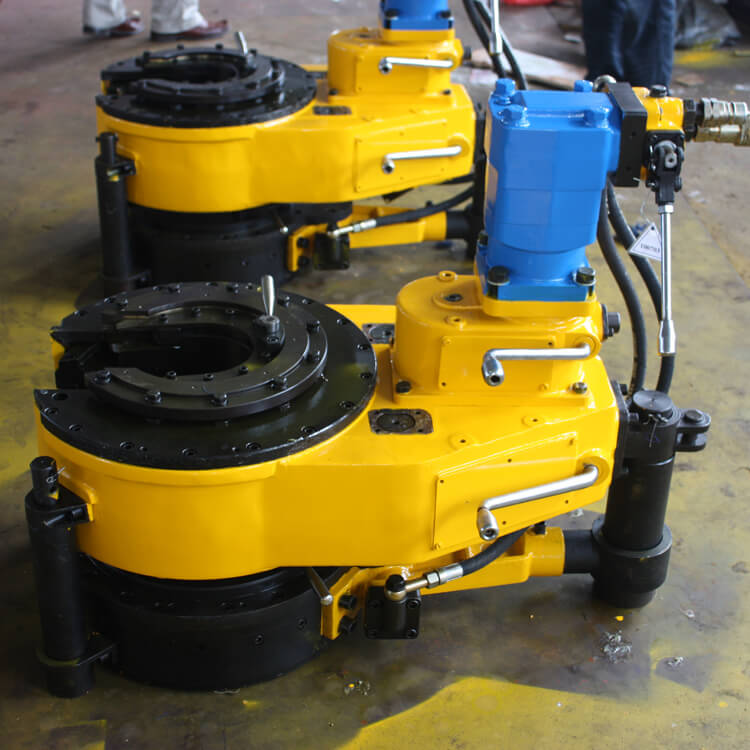

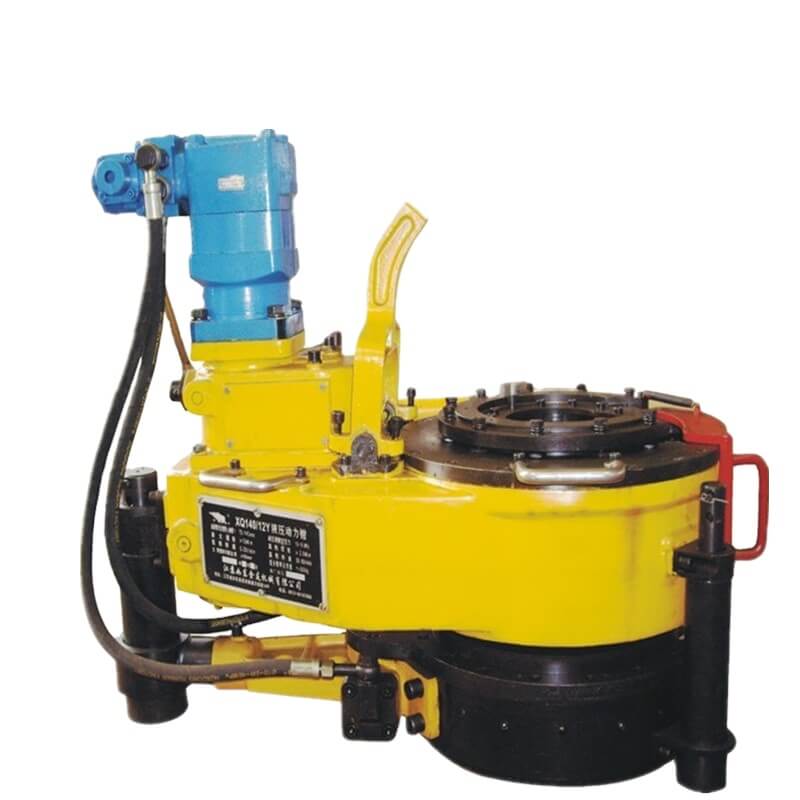

XYQ12 Tubing Power Tong Oil Pipe
Product name: tubing power tong oil pipe hydraulic power tong, XYQ12 tubing power tong oil pipe hydraulic power tong is used for quick make-up /break-out in well service operations .The XYQ12 tubing power tong oil pipe hydraulic power tong is equipped with hydraulic bacdup tong and use inner curved cam to clamp.$2,000.00 – $8,000.00/ Set|1 Set/Sets(Min. Order)
XYQ12 tubing power tong oil pipe hydraulic power tong is used for quick make-up /break-out in well service operations .The XYQ12 tubing power tong oil pipe hydraulic power tong is equipped with hydraulic bacdup tong and use inner curved cam to clamp.
| Model | XYQ3B/3C | XYQ6B | XYQ12 | |
| Pipe size range of master tong | mm | 60~89 | 73~114 | 60~140 |
| in | 2-3/8”~3-1/2” | 2-7/8”~4-1/2” | 2-3/8”~5-1/2” | |
| Pipe size range of backup tong | mm | 60~114 | 89~141.5 | 73~156 |
| in | 2-3/8”~4-1/2” | 3-1/2”~5-1/8” | 2-7/8”~6-1/8” | |
| High gear rated torque | kN.m | 1.1 | 1.5 | 2.6 |
| Ibf.ft | 811 | 1106 | 1918 | |
| Low gear rated torque | kN.m | 3 | 6 | 13 |
| Ibf.ft | 2213 | 4425 | 9588 | |
| High gear rated speed | r/min | 100 | 85 | 68 |
| Low gear rated speed | r/min | 30 | 20 | 13 |
| Rated operation pressure | Mpa | 10 | 11 | 12 |
| psi | 1450 | 1595 | 1740 | |
| Maz.Flow | L/min | 80 | 100 | 120 |
| gpm | 21 | 26 | 32 | |
| Dimension | mm | 650*430*550 | 750*500*600 | 1042*582*839 |
| in | 25.6*16.9*21.7 | 29.5*19.7*23.6 | 41.0*22.9*33.0 | |
| Weight (including backup tong ) | kg | 158 | 220 | 471 |
| lb | 348 | 485 | 1038 | |

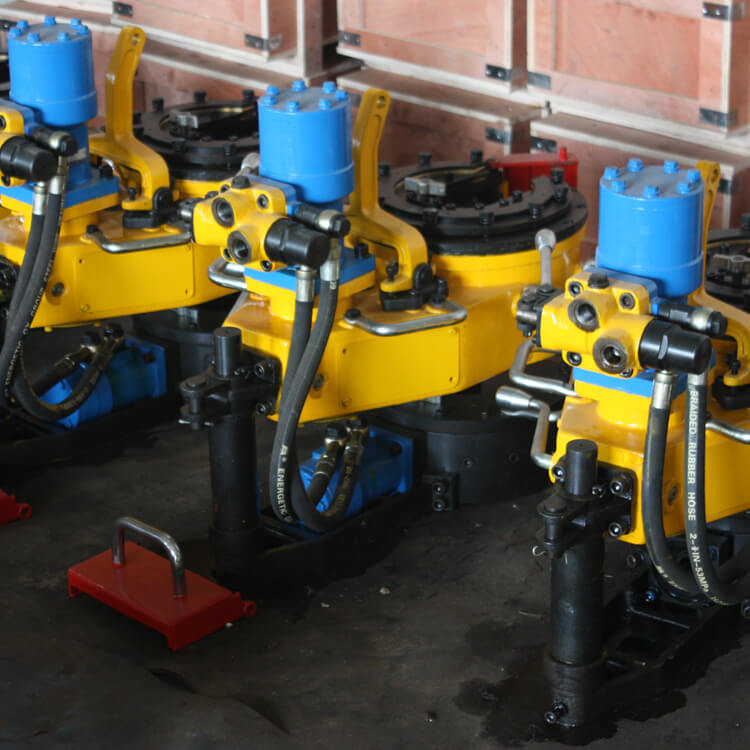

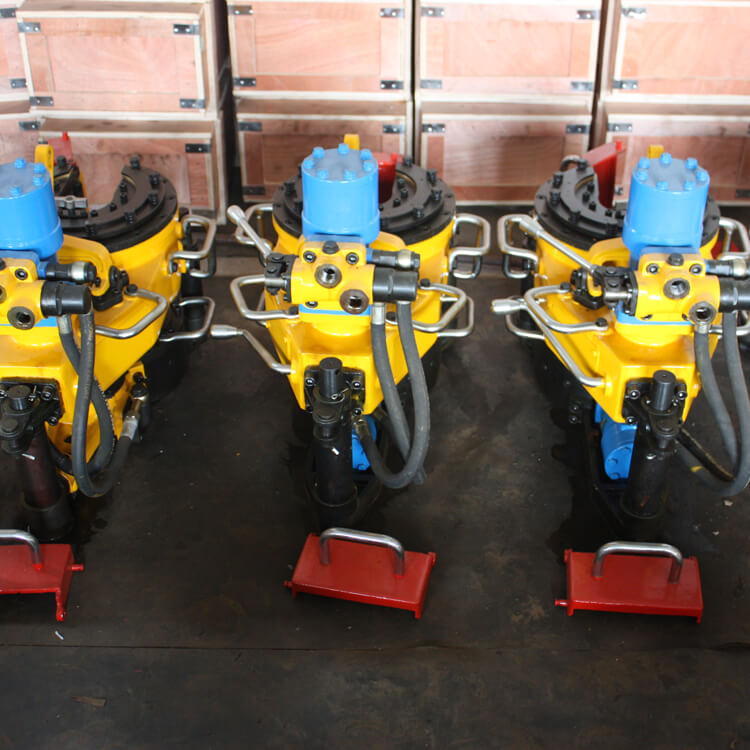

plywood case for XYQ12 tubing power tong oil pipe hydraulic power tong
